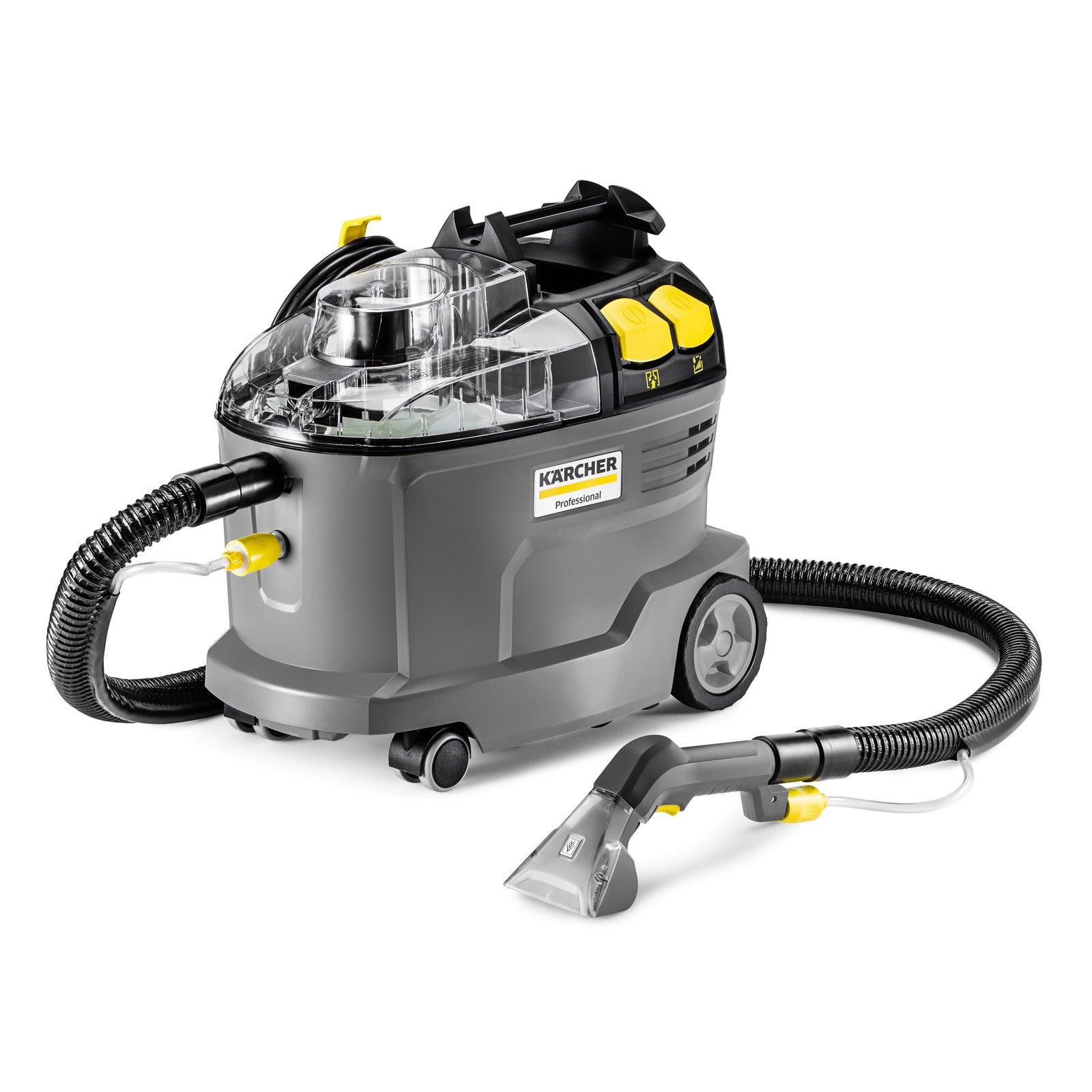

Karcher Professional spray Extractor puzzi 8/1

Karchers new Puzzi 10/1 and 10/2 provide new levels of convenience and ease of use, thanks to
a host of design features all intended to make carpet and upholstery cleaning more productive and
therefore quicker and at lower cost. Using the proven spray-extraction method but with the added
advantage of Karchers revolutionary flexible suction tool, the 10/1 and 10/2 deep clean carpets
and leave only minimal residual moisture. This means that carpets and upholstery are left almost
completely dry, reducing the risk of re-soiling and enabling cleaned areas to be used again very
quickly.

Convenient Storage

The new storage systems
enable the power cable and
upholstery tool to be
conveniently stored on the
machine, reducing the risk of
damage or loss.

Ease of use

The all-new handle can be
adjusted to suit any operator
height without tools, and
features two clear windows to
monitor cleaning progress. The
new rotating plastic lip ensures
optimum contact is made with
the ground regardless of the
angle of the floor tool,
dramatically improving ease of
use and cleaning results

Upholstery Tool

The new upholstery tool is designed to be very tough but light
weight. The tool can be stored on the back of the machine for
quick access. Standard on Puzzi 10/1

Tech Spec

Puzzi 10/1

Max. area performance m²/h 2025
Air flow rate l/s 74
Vacuum mbar / kPa 220 / 22
Spray rate l/min 1
Spray pressure bar 1
Tank, fresh water l 10
Tank, dirt water l 9
Turbine power rating W 1250
Power rating pump W 40
Brush motor power rating W
Weight kg 10.7
Dimensions (L x W x H) mm 710 x 330 x 440
Order number 1.100-132.0

Extra benefits of the more powerful Puzzi 10/2
The Puzzi 10/2 has better spray performance for deeper cleaning.
The 10/2 also benefits from on-board detergent storage and
de-foamer tank to reduce foam build-up in the dirty tank.
New upholstery tool
The new upholstery tool is designed to be very tough but light
weight. The tool can be stored on the back of the machine for
quick access. Standard on Puzzi 10/1, optional on Puzzi 10/2.
