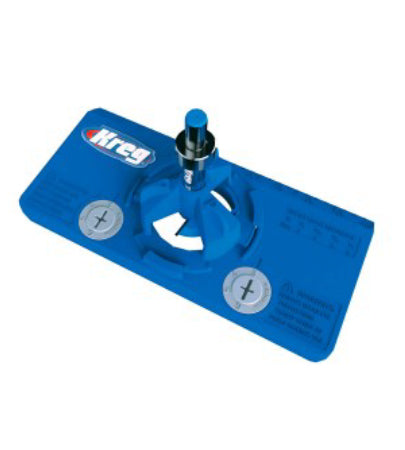

Kreg concealed hinge jig
Kreg concealed hinge jig
Regular price
$240.00 TTD
Regular price
Sale price
$240.00 TTD
Unit price
per
Couldn't load pickup availability
Kreg Concealed Hinge Jig Kreg's Concealed Hinge jig is a simple solution for drilling concealed hinge holes. (You may know concealed hinges as euro hinges, 35mm hinges or cup hinges.) It helps you drill a clean hole in the proper position, offset and depth with ease. Positioning and Drilling Set the cams on the jig body to the offset specified by the hinge manufacturer. Position the jig vertically on the door using the measuring scale. Clamp the jig in place and attach the drill guide and bit. Drill the cup hole and you're almost finished. The last step is to remove the drill guide assembly and drill the screw holes with a 1/16" drill bit. Specifications The Kreg Concealed Hinge Jig works with hinge offsets of 3mm, 4mm, 5mm, & 6mm. It can position hinges 50mm (2") or further from the top or bottom of a door. Includes: Jig base with index cams Drill guide 35mm carbide-tipped drill bit Stop collar with hex wrench Owner’s manual Required: Drill 1/16" drill bit
